What's New in AG Grid 29.2

  |   Releases

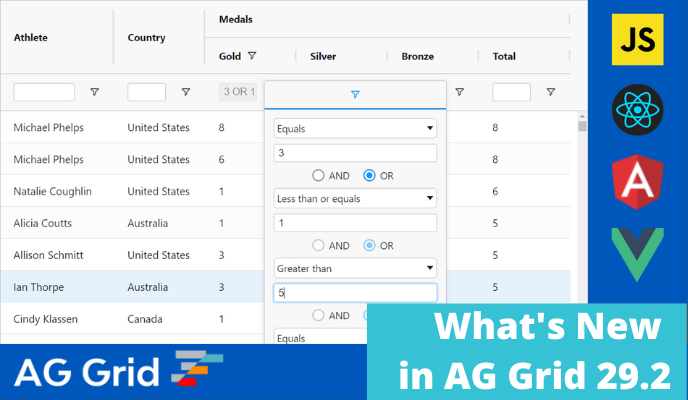

What's New in AG Grid 29.2 banner: Gold filter with several OR conditions, beside JS, React, Angular and Vue logos

AG Grid 29.2 is an important minor version with many stability improvements and highly-requested new features:

1. Header checkbox selection and group selection when using server-side row model
2. Entering more than two filter conditions in a column filter
3. Vertically-spanning column header cells
4. Displaying "No Data" overlay in the chart when there's no data
5. Displaying stacked and unstacked column series together in the chart

As this is a minor version, there are many quality and performance improvements and no breaking changes. We recommend reviewing the list of new features and deprecations in the release notes when planning to update to this version.

Please see the full list of changes in our changelog.

Header Checkbox Row Selection with the Server-side Row Model

AG Grid 29.2 adds support for select all/deselect all rows when using server-side row model. This allows you to have all the rows selected even if they're not loaded from the server yet. See this demonstrated here and shown below:

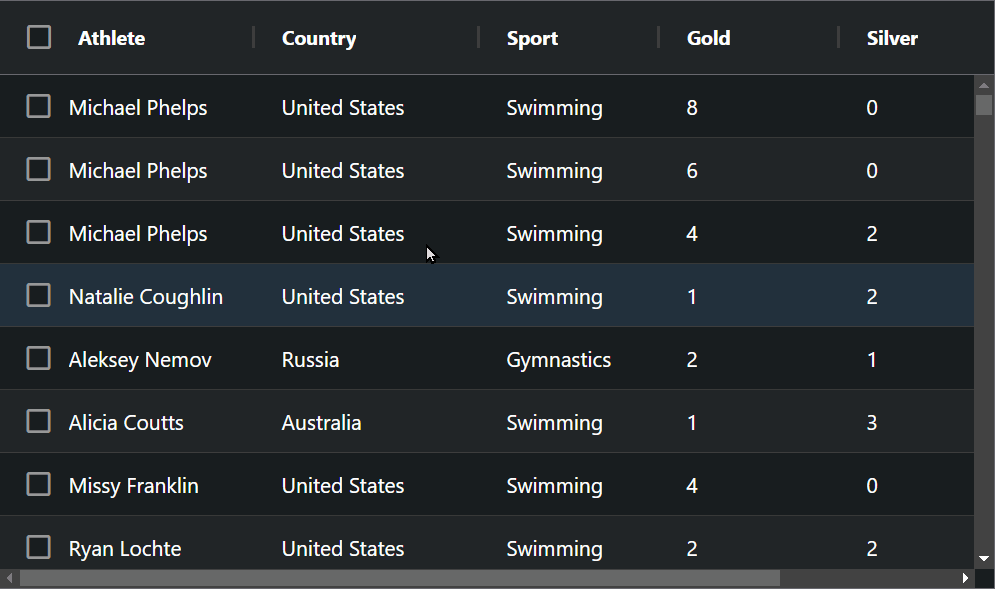

Animation: the header checkbox selects every row, then scrolling reveals not-yet-loaded rows in a loading state

Group Row Selection with the Server-side Row Model


AG Grid 29.2 adds support for group row selection when using the server-side row model. This allows you to accurately implement row selection when using larger server-side datasets. See this demonstrated here and shown below:

Animation: ticking server-side country and year group rows selects their children, and it holds after a Gold filter

Entering Many Conditions in a Column Filter

AG Grid 29.2 adds support for entering more than two conditions in the column filter. This allows end-users to enter more powerful filters and find the data they need more quickly. See this documented here and shown below:

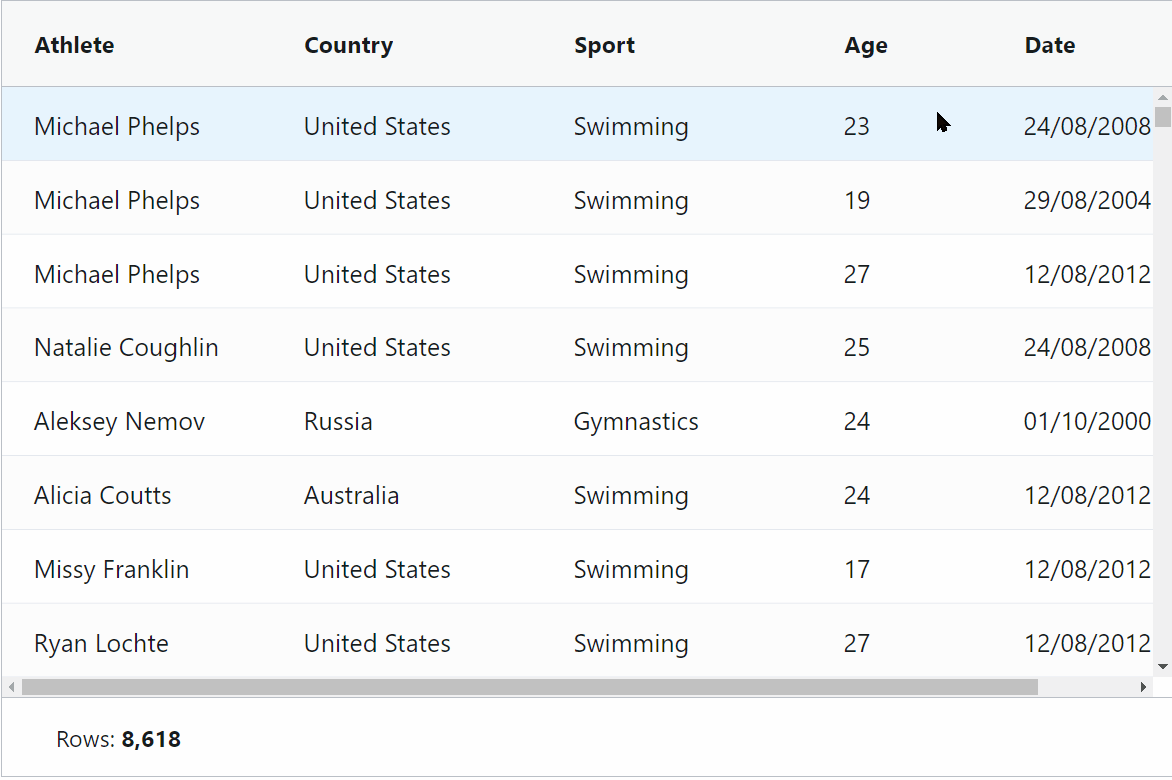

Animation: Age filter gains OR conditions equals 20, less than 18 and greater than; rows go from 8,618 to 483

Vertically-spanning Column Header Cells

AG Grid 29.2 adds an optional column header mode to span the column header to occupy vacant space if there's no parent column group header. This mode produces a simpler, visually-attractive column layout, as shown below. This new mode is documented here and an example column header layout is shown below.

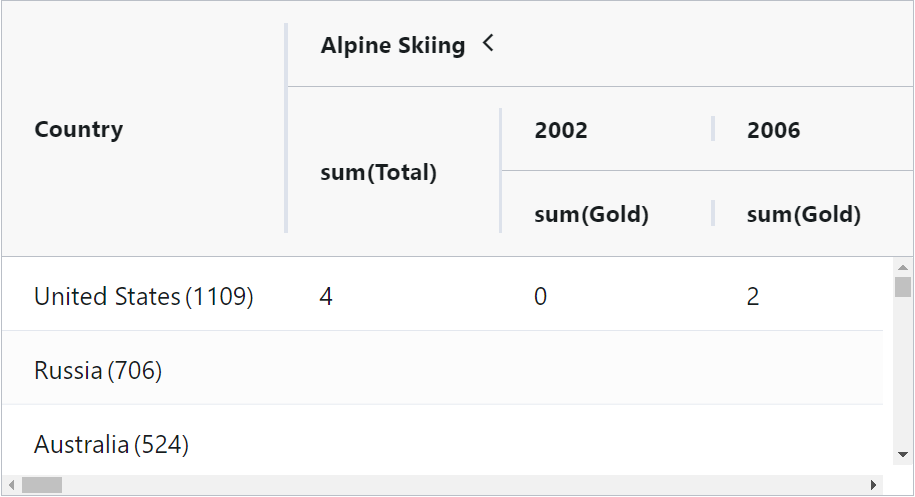

Pivoted grid where the Country and sum(Total) headers stretch down to fill the empty group header space

Displaying a "No Data" Overlay in the Chart

AG Charts adds the ability to display overlays with a message for the user when there's no data or no series displayed in the chart. This is documented here and shown below:

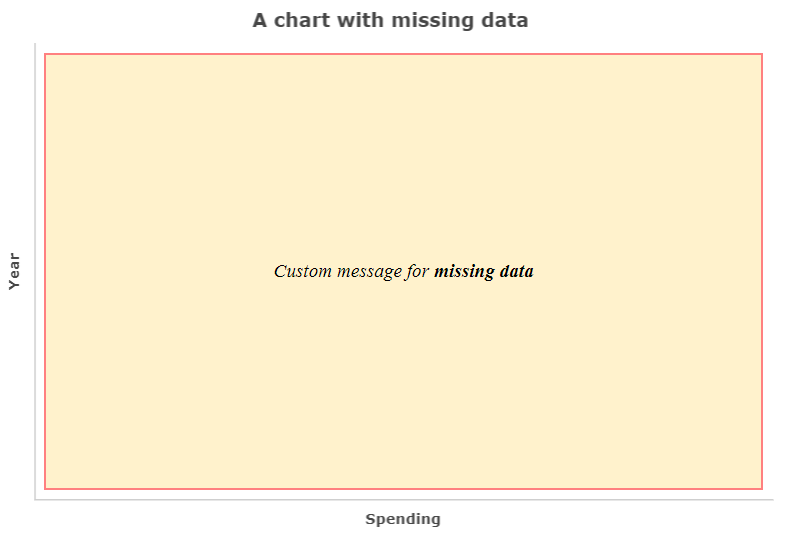

Empty chart titled 'A chart with missing data' showing the overlay 'Custom message for missing data'

Displaying Stacked and Unstacked Column Series in the Chart

AG Charts now allows you to display stacked and unstacked column series in the same column group in the chart. See this documented here and shown below:

Summary

AG Grid 29.2 delivers major new features to help you build more powerful and better-looking grid and chart UIs. It addresses many issues and makes important enhancements to current functionality. This is why we highly recommend upgrading to this version soon.

We suggest reviewing the list of new features in the release notes when planning to update - see the full list of changes in our changelog.

As always, we’re keen to help you upgrade and to hear your feedback.

Happy coding!
