Conditional Formatting for Cells in AG Grid

  |   How To

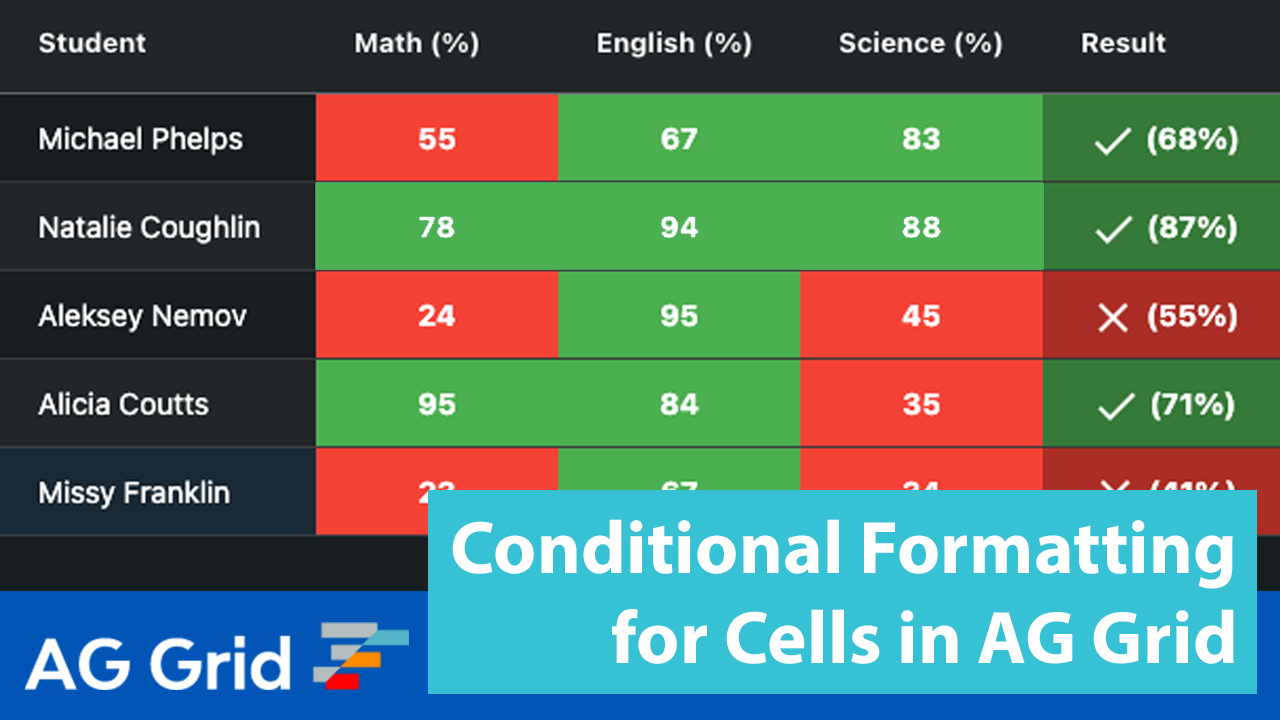

Student scores grid with passing cells in green, failing cells in red and a tick or cross result column

Conditionally formatting cells in AG Grid is done using Cell Class Rules. Cell Class Rules are configured on Column Definitions. This feature is useful when you want to make different cells stand out so your users can quickly identify them.

Animation: editing Michael Phelps's English score from 67 to 1 turns the cell from green to red

Column Definitions

Below is an example of Column Definitions with Cell Class Rules.

// javascript

const cellClassRules = {
  "cell-pass": params => params.value >= 60,
  "cell-fail": params => params.value < 60
};

const columnDefs {
  { field: 'student' },
  { field: 'math', cellClassRules: cellClassRules },
  { field: 'english', cellClassRules: cellClassRules },
  { field: 'science', cellClassRules: cellClassRules },
}

The key of the Cell Class Rules is a CSS class and the value is a function that returns true or false. If true the CSS class is applied and if false it is not. Thus you will also need to define these CSS classes.

/* style.css */

.cell-fail {
  text-align: center;
  font-weight: bold;
  background-color: #f44336;
}

.cell-pass {
  text-align: center;
  font-weight: bold;
  background-color: #4caf50;
}

Cell Class Rules are explained in the AG Grid documentation.
